Sommer Twist 350

Sommer Twist 350 Swing Gate Opener is a powerful operator for gates up to 4 m leaf width. This device has a very compact design; the twist 350 can be universally used for gates opening to the left or right, in 1- or 2-leaf operation. In this device the controlled soft run reduces speed right before the end positions, avoiding wear and tear on the gate and operator.

Specialities

● Gate wing weight: Max. 500 kg**
● Gate wing width: Max. 4 m***
● Travel length (per operator):390 mm (twist 200 E) 550 mm (twist 200 EL)
● Power supply: AC 220 ... 240 V
● Motor voltage: DC 24 V
● Rated frequency: 50/60 Hz
● Temperature range: –30°C to +70°C
● Protection class:Operator: IP44
● Control unit: IP65

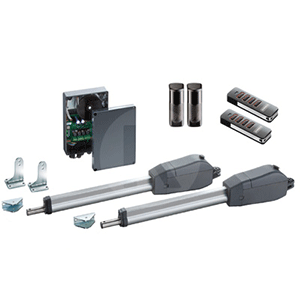

In the box, you will get
● Two twists 350 swing gate operators.
● A Control unit in housing.
● Post and hinged double door fittings.
● A Radio receiver SOMup4 FM 868.95 MHz.
● Two 4-command handheld transmitters Pearl Vibe.
● A Blinker light.
